The 5G/4G/3G Raspberry Pi communication HAT utilizes the SIMCom 5G module SIM8200EA-M2. It supports both 5G NSA and SA networking and delivers impressive data rates of up to 2.4 Gbps (DL) / 500 Mbps (UL).

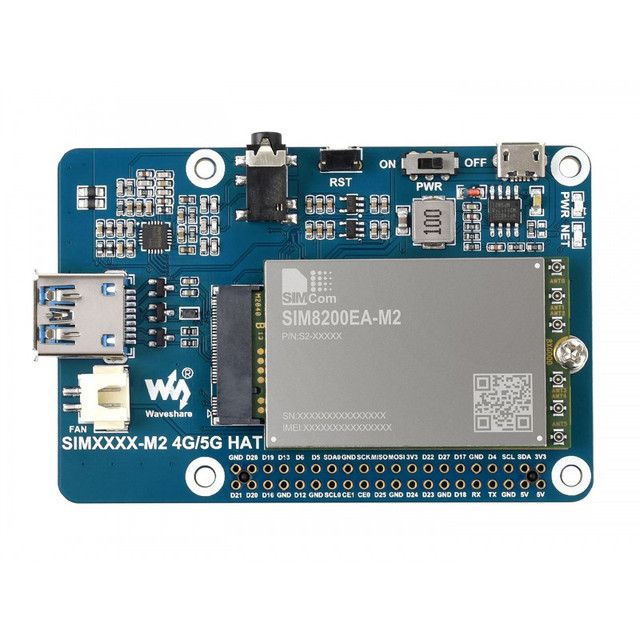

The HAT’s base board is equipped with a standard M2 connector, making it compatible with various 4G or 5G communication modules with M2 packaging. Additionally, it includes other features such as a USB3.1 port, audio jack and decoder, SIM card slot, and more. With our configuration script and development resources, it’s easy to enable high-speed 5G communication for the Raspberry Pi or computer. This HAT is perfect for quickly evaluating 5G modules and integrating into various applications that require a 5G connection.
-
Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards, Jetson Nano.
-
Comes with SIM8200EA-M2 core module, based on Qualcomm snapdragon X55 platform, with multi mode multi band support.
-
5G/4G/3G communication support.
-
USB3.1 port for testing AT commands, sending messages, cloud communication, making a phone call, getting GNSS positioning data, etc.
-
SIM card slot, supports 1.8V / 3V SIM card.
-
2 x LED indicators, easy to monitor the working status.
-
AT command support, based on 3GPP TS 27.007, 27.005, and V.25TER command set.
-
Onboard audio jack and audio decoder, allow audio operation like making a phone call.
-
Multi-constellation dual-band positioning: GPS, GLONASS, Beidou, Galileo, and QZSS.
-
Operating system support: Windows/Linux/Android.
-

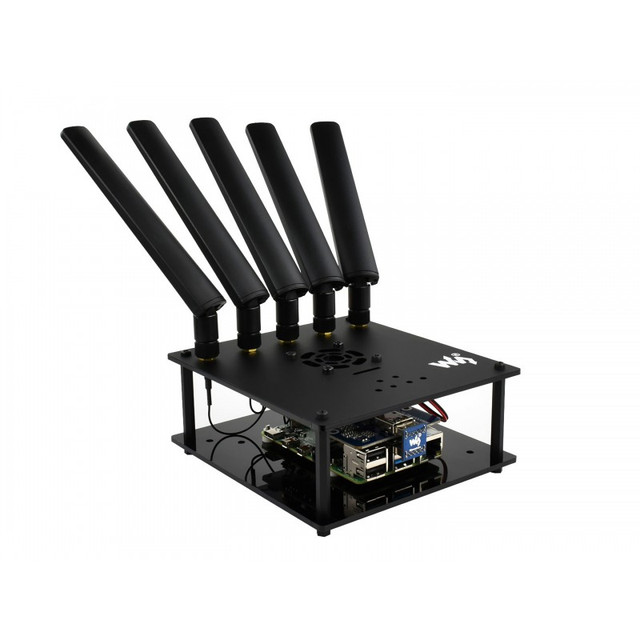

Comes with quality acrylic case and cooling fan, nice looking, better heat dissipation.
- SIM8200EA-M2 x1
- SIMXXXX-M2 4G/5G HAT base x1
- 5G/4G/3G/2G External Antenna x5
- Power adapter 5V 3A Micro x1
- USB3.0 dual plug cable x1
- USB3.0 Adapter x1
- USB2.0 Adapter x1
- Black acrylic case panel x1
- 2×20PIN pin header x1
- 4010 cooling fan x1
- Screws pack x1
- GPS passive antenna x1
- Screwdriver x1
FAQs:
Q:Â What is the maximum data rate supported by the SIM8200EA-M2 5G HAT?
A:Â The SIM8200EA-M2 5G HAT supports data rates of up to 2.4 Gbps (download) and 500 Mbps (upload).
Q:Â What communication modules are compatible with the SIM8200EA-M2 5G HAT?
A:Â The SIM8200EA-M2 5G HAT is compatible with various 4G or 5G communication modules with M2 packaging.
Q:Â What operating systems does the SIM8200EA-M2 5G HAT support?
A:Â The SIM8200EA-M2 5G HAT supports Windows, Linux, and Android operating systems.
Q:Â Can I make phone calls and send SMS using the SIM8200EA-M2 5G HAT?
A:Â Yes, the SIM8200EA-M2 5G HAT allows you to use AT commands to make phone calls and send SMS.
Q:Â What are the application scenarios for the SIM8200EA-M2 5G HAT?
A:Â The SIM8200EA-M2 5G HAT is suitable for applications such as CPE (Customer Premises Equipment), Intelligent Gateway, UAV (Unmanned Aerial Vehicle), Live Video, Telemedicine, and Intelligent Security.
