Raspberry Pi Pico W and Pico WH

Store
0 out of 5
SKU: 11-TB101

in stock

Original price was: ₹814.20.Current price is: ₹649.00. (incl Gst)

Tax included Shipping calculated at checkout

500 in stock

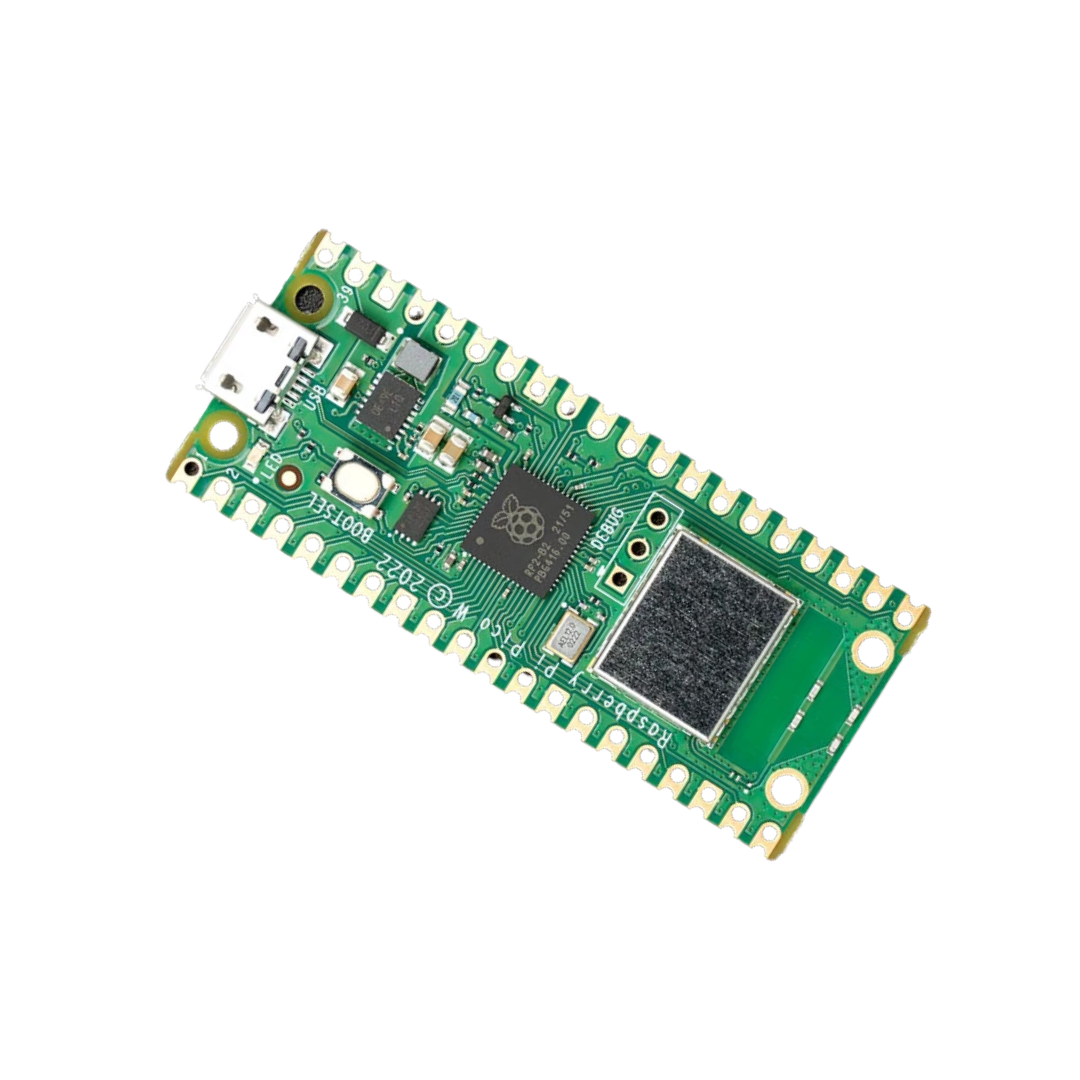

Raspberry Pi Pico W and Pico WH (with Headers) board is based on the RP2040 microcontroller chip designed by Raspberry Pi. RP2040 is a Dual Core ARM Cortex M0+ processor with a flexible clock running upto 133 MHz with 26 multifunction GPIO pins, including 3 analog inputs.

Description

The Raspberry Pico W and Pico WH (with Headers) is a microcontroller based developement board. At this heart is a RP2040 microcontroller chip designed by Raspberry Pi in UK. It features a Dual Core ARM Cortex-M0+ processor running upto 133 MHz with 264 KB of on-chip SRAM. The Pico also has a 2 MB of onboard Flash memory, providing enough space for code and data storage.

The “W” in the Pico W standards for wireless connectivity. Pico W offers offers 2.4GHz 802.11 b/g/n wireless LAN support and Bluetooth 5.2, with an on-board antenna, and modular compliance certification. It can be operated in both station and access point modes.

Pico has extensive I/O capabilities with 26 GPIO Pins, including 3 Analog Inputs and lots of interfacing options including 2 × SPI, 2 × I2C, 2 × UART, 3 × 12-bit ADC, 16 × controllable PWM channels. Moreover, 26 of the GPIO pins are multi-function, which means we can configure those pins to a different behavior like UART/I2C/SPI/GPIO.

It includes a USB 1.1 with device and host support, allowing easy connection to PCs or other USB devices, this enables drag-and-drop programming feature that simplifies the process of loading and updating code on the device using mass storage over USB.

Features

  • Castellated module allows soldering direct to carrier boards (Raspberry Pi Pico and Pico W only)
  • Drag-and-drop programming using mass storage over USB
  • Low-power sleep and dormant modes
  • Accurate on-chip clock
  • Temperature sensor
  • Accelerated integer and floating-point libraries on-chip

Specification

Microcontroller Dual Core ARM Cortex-M0+ @ 133 MHz
Memory 264KB on-chip SRAM
2MB on-board QSPI flash
Interfacing 26 GPIO Pins, including 3 Analog Inputs
Peripherals 2x UART
2x SPI
2x I2C
16 PWM Channels
1x USB 1.1 Controller and PHY, with Host and Device Support
8x PIO State Machines
Connectivity 2.4GHz IEEE 802.11b/g/n wireless LAN
Bluetooth 5.2
Support for Bluetooth LE Central and Peripheral roles
Support for Bluetooth Classic
Input Power 1.8V to 5.5V DC
Operating Temperature -20°C to +85°C
Dimension 21 x 51 mm
